Drawing multiple Polygons/Polylines from a single ImmediateModeShapeDrawer does not work
Setup: tiny scene with only a single camera and one ImmediateModeShapeDrawer
Drawer class:
[ExecuteAlways]
public class ShapeDrawer : ImmediateModeShapeDrawer
{
[SerializeField] private List<Shape> _shapes;
private PolygonPath _fillPath;
private PolylinePath _strokePath;
[Serializable]
public struct Shape
{
public bool fill;
public bool stroke;
public Color fillColor;
public Color strokeColor;
public bool closed;
public float lineThickness;
public ThicknessSpace thicknessSpace;
public LineGeometry lineGeometry;
public List<Vector2> points;
}
public override void OnEnable() {
base.OnEnable();
_fillPath = new PolygonPath();
_strokePath = new PolylinePath();
}
public override void OnDisable() {
base.OnDisable();
_fillPath.Dispose();
_strokePath.Dispose();
}
public override void DrawShapes(Camera cam) {
if(_shapes == null || _shapes.Count < 1)
return;
Draw.ResetStyle();
Draw.Matrix = transform.localToWorldMatrix;
int i = 0;
foreach(Shape shape in _shapes) {
if(shape.points == null || shape.points.Count < 1 || (!shape.fill && !shape.stroke)) {
i++;
continue;
}
_fillPath.ClearAllPoints();
_strokePath.ClearAllPoints();
_fillPath.AddPoints(shape.points);
_strokePath.AddPoints(shape.points);
using (Draw.Command(cam)) {
if(shape.fill) {
Dev.Log(gameObject, GetType(), "drawing fill " + i);
Draw.Color = shape.fillColor;
Draw.Polygon(_fillPath);
}
if(shape.stroke) {
Dev.Log(gameObject, GetType(), "drawing stroke " + i);
Draw.Color = shape.strokeColor;
Draw.Thickness = shape.lineThickness;
Draw.ThicknessSpace = shape.thicknessSpace;
Draw.LineGeometry = shape.lineGeometry;
Draw.Polyline(_strokePath, shape.closed, PolylineJoins.Miter);
}
}
i++;
}
}
}

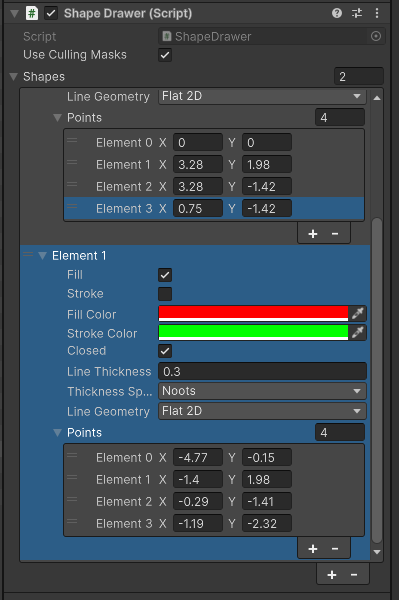

Inspector:

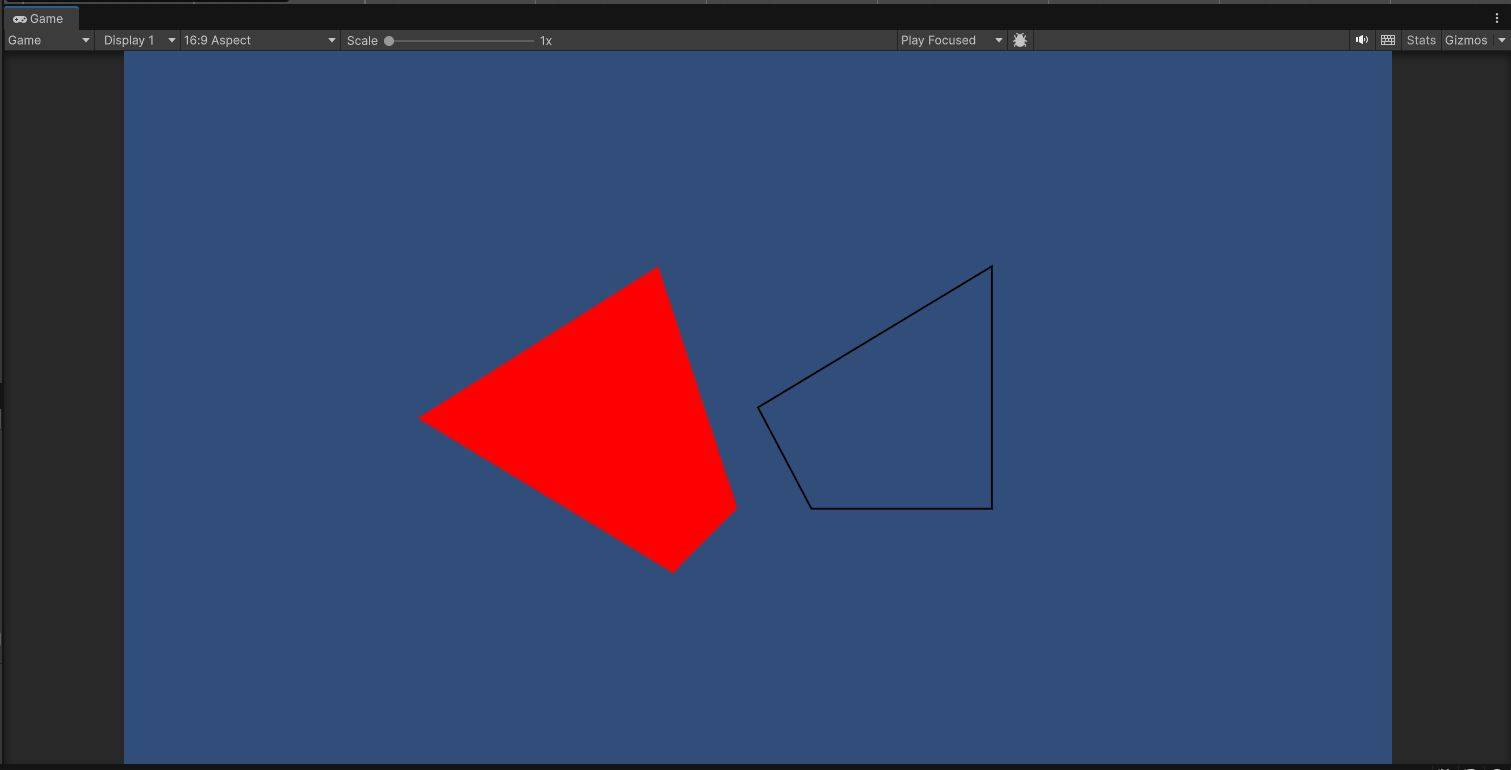

Result (should be a white shape w/ black outline, plus another red shape w/ no outline):

As you can see, it only ever draws one of each shape.
Reporting a bug? please specify Unity version:
6000.3.5f1
Reporting a bug? please specify Shapes version:
4.5.1
Reporting a bug? please specify Render Pipeline:
Built-in render pipeline
There's two things! I'm guessing the second one is the real issue, but
